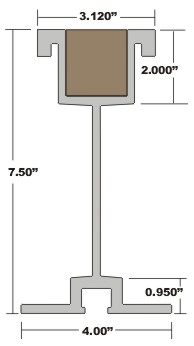

7 1/2" Aluminum Stringer Beam w/Wood Nailer
Physical Specifications
| Overall Height |
7.50" |
| Base Width |
4.00" |
| Width Inverted Top Plate Section |
3.12" |
| Cross Sectional Area (w/o nailer) |
4.27" |
| Nominal Weight (w/o nailer) |
5.15 lb./ft. |
| Nominal Weight (w/nailer) |
5.50 lb./ft. |
Standard Lengths
Part # |
Length |
Weight (lbs.) |
| ASB6 |
6' |
33.0 |
| ASB8 |
8' |
44.0 |
| ASB10 |
10' |
55.0 |
| ASB106 |
10' 6" |
58.3 |
| ASB12 |
12' |
66.0 |
| ASB14 |
14' |
77.0 |
| ASB16 |
16' |
88.0 |
| ASB18 |
18' |
99.0 |
| ASB21 |
21' |
115.5 |
| ASB24 |
24' |
132.0 |
Load Ratings At Give Spans
Span (ft.) |
Deflection (in.) |
Load (lbs./ft.) |
| 4' 0" |
0.13 |
4050 |
| 4' 6" |
0.15 |
3600 |
| 5' 0" |
0.17 |
3240 |
| 5' 6" |
0.18 |
2950 |
| 6' 0" |
0.20 |
2333 |
| 6' 6" |
0.22 |
1840 |
| 7' 0" |
0.23 |
1465 |
| 7' 6" |
0.25 |
1195 |
| 8' 0" |
0.27 |
990 |
| 8' 6" |
0.28 |
810 |
| 9' 0" |
0.30 |
690 |
| 9' 6" |
0.32 |
590 |
| 10' 0" |
0.33 |
490 |
|
